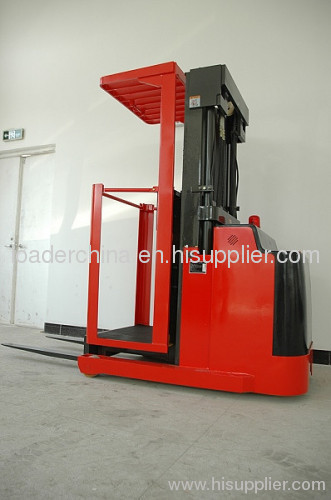

THA1040 High Level Order Picker

Price: 15846.0~24873.0 USD
Place of Origin: Shandong, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: THA1040
Packing: Nude
Brand Name: Dragon Machinery
Load center MM: 450
Production Capacity: 200
Delivery Date: 30 days
Operation Type: Stand-on

High Level Order Picker THA1040

Descriptiom
Model No. THA1030 THA1040 THA1045
Operation Type Stand-on Stand-on Stand-on
Rated Load Capacity (KG) 1000 8000 600
Load center MM 450
Max Lift Height (mm)--H 3000 4000 45000
Min. Road Clearance- Fork(mm)--H 35 35 35
Max./Min.Height-Operation Compartment (mm)--H1 3205/215 4205/215 4705/215
Max./Min.Height-Overhead Guard (mm)--H2 5237/2247 6237/2247 6737/2247
Height-Mast Lowered (mm)-H3 2260 2760 3010
Height-Mast Extended (mm)-H4 3745 4745 5245
Min. Road Clearance (mm)-H5 30
Overall Length (mm)--L 2536
Front Wheelbase (mm)--L1 1235
Rear Wheelbase (mm)--L2 160
Length-Fork (mm)-L3 930
Overall Width (mm)--W 1080
Rear Tread (mm)--W1 942
Fork Width-Outer (mm)--W2 700
Fork Width-Inner (mm) --W3 600
Min Turning Radius (mm)-Ra 1440
Wheel Type PU
Wheel Size-Drive (mm) 230*83.5
Rear Wheel(mm) 150*90
Banalce Wheel-(mm) 150*50
Travel Speed-Laden/Unladen-(km/h) 4/4.8 4/4.8 4/4.8
Lift Speed-Unladen-(mm/s) 100 100 100
Descent Speed-Unladen-(mm/s) 70-97
Gradeability-Laden/Unladen-% /
Driving Motor (KW) AC1.1 AC1.1 AC1.1
Lifting Motor (KW) 3 3 3
Steering Motor (KW) 0.75 0.75 0.75
Battery-V/AH 24/480 24/480 24/480
Charger V/A 24/70 24/70 24/70
Service Weight (with battery) KG 2340 2440 249
